Maxxrack™ is a versatile warehouse storage solution made from high-quality galvanized iron with a high load capacity of an extra 3200 kg. Without having to leave the vehicle, the forklift driver can pick a rack from the storage and easily place it on a pallet location. Its ingenious construction makes the Maxxrack™compact to stack and therefore easy to transport. Storage capacity is increased by 90% thus also increasing the efficiency of your warehouse.

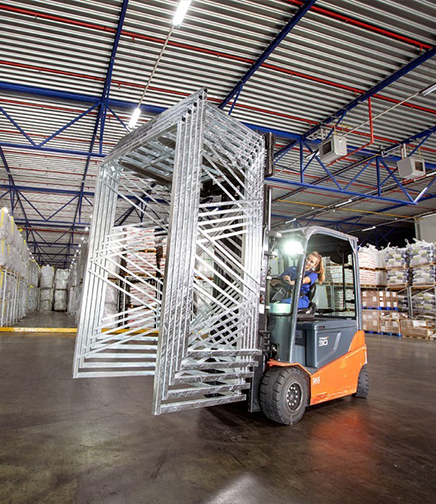

Using the Maxxrack™ movable storage frame enables you to use your valuable space extremely efficiently with no need for additional investment in storage space. When the Maxxrack™ frame is not being used, it can easily be stacked, up to 10 pieces per pallet location, and can even be stored outside.
Using galvanized steel reduces corrosion to a minimum and rubber caps are available for any sealing that may be required in the food industry. Each frame has its own identification number and comes with a CE mark. Because the frame is movable, it does not have to be tested every year.
Why Maxxrack™?
Provides up to 90% extra storage space
Extra 3200kgs more load per 1.5m2
Requires only one forklift driver without leaving the vehicle
Each frame has a unique number and CE mark
Stackable up to 10 in outdoor spaces when not in use
Help reduced greenhouse gases and a greener environment
Frames are made from
high-quality galvanized steel
Provides safe storage to difficult-to-stack goods
Storage frames are movable and very flexible to use
| Type | Open front | Closed back | Free depth | Free height |
|---|---|---|---|---|
| A | 1,400 | 1,300 | 1,150 | 2,250 |
| A+ | 1,400 | 1,300 | 1,150 | 2,350 |
| A++ | 1,400 | 1,300 | 1,150 | 2,600 |
| B | 1,600 | 1,500 | 1,150 | 2,250 |
| C | 1,300 | 1,200 | 1,150 | 2,250 |
| C+ | 1,300 | 1,200 | 1,150 | 2,350 |
| D | 1,400 | 1,200 | 1,000 | 2,250 |
| E | 1,600 | 1,400 | 1,050 | 2,250 |
| F | 1,360 | 1,160 | 1,700 | 2,600 |
| G | 1,810 | 1,610 | 1,160 | 2,600 |
| Type | Open front | Closed back | Free depth | Free height |
|---|---|---|---|---|
| A | 1,400 | 1,300 | 1,150 | 2,250 |
| A+ | 1,400 | 1,300 | 1,150 | 2,350 |
| A++ | 1,400 | 1,300 | 1,150 | 2,600 |
| B | 1,600 | 1,500 | 1,150 | 2,250 |
| C | 1,300 | 1,200 | 1,150 | 2,250 |
| C+ | 1,300 | 1,200 | 1,150 | 2,350 |
| D | 1,400 | 1,200 | 1,000 | 2,250 |
| E | 1,600 | 1,400 | 1,050 | 2,250 |
| F | 1,360 | 1,160 | 1,700 | 2,600 |
| G | 1,810 | 1,610 | 1,160 | 2,600 |
